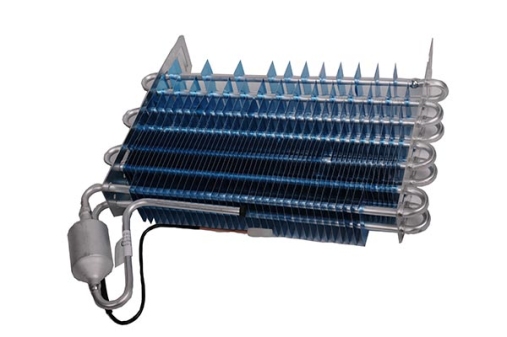

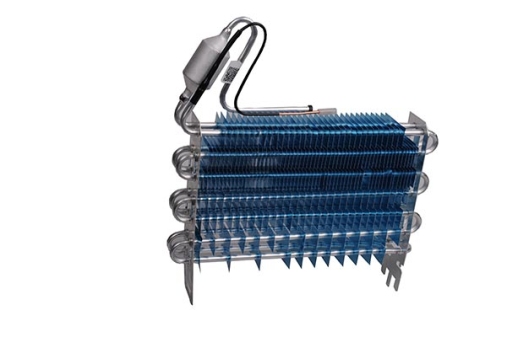

Fin evaporatorBack

The air cooled refrigerator adopts push in fin structure, which has large heat exchange area,long pipeline and high heat exchange efficiency.

The product adopts push in fin structure, which has large heat exchange area, long pipeline and high heat exchange efficiency;

The product adopts 1060 aluminum pipe and aluminum foil processing, which ensures high efficiency heat exchange and at the same time, better corrosion resistance performance;

The product adopts hydrophilic aluminium foil to avoid frosting and keep the evaporator running more stably;


Product parameter

Outline size

long

354mm

width

60mm

height

390mm

Main material specifications

Aluminum pipe

Φ8*0.75mm

Copper pipe

Φ8*0.75mm

Aluminum foil

Thickness 0.2mm hydrophilic aluminum foil

Fluid reservoir

Φ40*1*80mm

Capillary

Φ2.8*0.7mm


Cooperative partner

Application fields

Suitable for single, double and multi air-cooled refrigerator and freezer;
